ENMA (Enmasa) / (Elizalde)

(Spain)


The small Alción engine that gave 275 CV at sea level and 250 CV at 1,500 meters of altitude, was a seven-cylinder radial. We have a catalog of the factory from which we publish some illustrations showing us details of this engine as they have not been able to be seen in the main text.

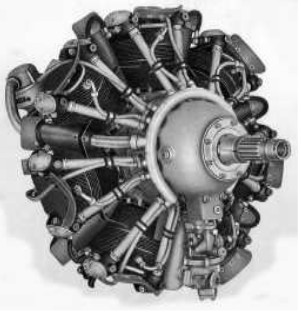

Enma Alción
"Enma Alción"

-ENMA was the National Aviation Engine Company, heir to the Elizalde, located in Barcelona, in the Sant Andreu neighborhood. Today, after several vicissitudes, it is ITP.

Dibujo del Alción en catálogo
"Drawing of the Alción in the same catalog"

-This engine was intended to cover a gap precisely for light aircraft and small helicopters. It had a compressor, gear and constant speed propeller.

Alción test
"Alción test"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
