The "Czeskoslovenska Zbrojovka" or Czechoslovak Arms Factory in Brno made a two-stroke radial diesel engine with 9 cylinders that gave 260 hp at 1,560 rpm.

-It was the ZOD-260-B9 of which few units were built.

CZ, front view
"CZ, front view"

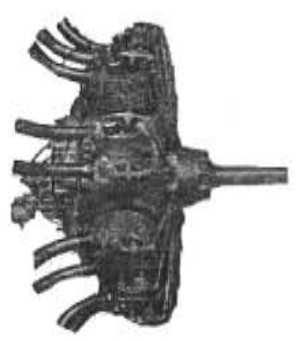

CZ, side view
"CZ, side view"

-It was built under the direction of Ing. Vodstreil. The intake is effected by a limit switch when the piston reaches the BDC.

-The exhaust is done by two valves in cylinder head.

Another view of the ZOD Diesel engine of this brand. Contributed by EAHS collaborator Evzen.

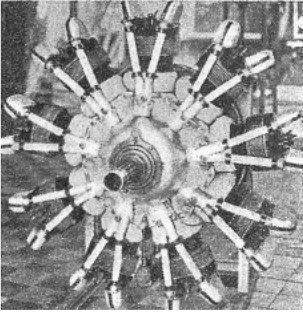

Better picture of the CZ ZOD-260-B9
“Better picture of the ZOD”

Engines of CZ

Model: ZOD-260B9

Arquitecture: 2-stroke9-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 260 CV @ 1560 rpm
Weight:

Other details:
CZ ZOD -260B9 engine

"CZ ZOD -260B9 engine"
