Updated: 03-Jul-2017
Compact Radial Engines Inc. manufactures and distributes their "MZ" and "SC" series multi-purpose two-stroke engines from their facilities in British Columbia Canada.
-The "MZ" series has models from 18 hp with a single cylinder up to 85 hp, with several cylinders.
"MZ-100"
-The MZ-100 with 18 hp at 9,700 rpm, is a single cylinder with a multiple-belt speed reducer for PPG applications.
“MZ-34”
-The MZ-34, with 27 hp at 6,250 rpm for ULM and PPG.
"MZ-35"
-The MZ-35, with 27 hp at 6,250 rpm for motor gliders.
"MZ-201"
-The MZ-201 is a two-cylinder that gives 45 hp at 4,700 rpm, for ultralight aviation.
"MZ-202"
-The MZ-202 is a two-cylinder in-line engine with a forced air blower. It gives 60 hp at 5,800 rpm. For ultralights and PPG.
"MZ-301"
-The MZ-301 gives 85 hp at 5,800 rpm and is used in ultralights, hovercrafts and experimental aircraft.

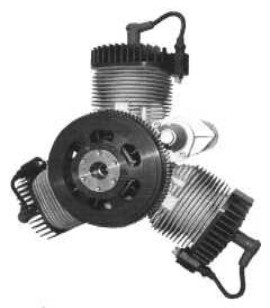

"SC-430"
The "SC" series consists of radial motors. The SC-430 three-cylinder gives 20 hp at 4,200 rpm, for powered paragliders (PPG).

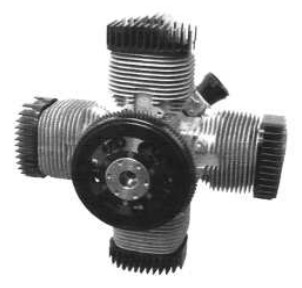

"SC-570"
-The SC-570 has 4 radial cylinders, gives 24 hp at 4,200 rpm and is used on motor gliders and Ultra light aviation.
-As we can see, the two series are air-cooled and 2-stroke. There is a possibility of adapting a reduction gear unit with a centrifugal clutch.
From Appendix 10: They keep expanding the range with new products, we highlight the most used in this year 2015.
"MZ-2, with belt gear"
"MZ-175"
"MZ-202, with 606 cc"
Engines of COMPACT RADIAL ENGINES
Model: MZ-100
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 98 cc
Bore / Stroke: 50 x 50 mm
Power: 18 HP @ 9700 rpm
Weight: 31 Lb
"Compact - MZ-100"
Model: MZ-175
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 175 cc
Bore / Stroke:
Power: 26.5 @ 8300 rpm
Weight: 33 Lb

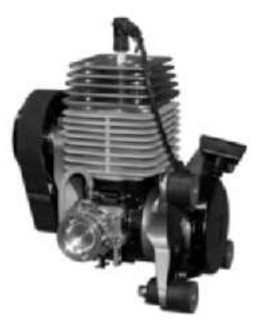

"Compact - MZ-175"
Model: MZ-2
Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke:
Power: @ rpm
Weight:
"MZ-2, with belt gear"
Model: MZ-201
Arquitecture: 2-stroke2-cylinder In-line
Cooling: Air
Total Displacement: 626 cc
Bore / Stroke: 76 x 69 mm
Power: 45 HP @ 4700 rpm
Weight: 69 Lb
It includes a 180W generator, electric and recoil starter. Double CDI ignition. Belt reduction

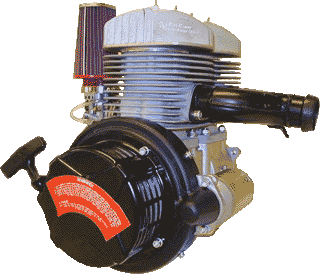

"Compact - MZ-201 color"
Model: MZ-202
Arquitecture: 2-stroke2-cylinder In-line
Cooling: Air
Total Displacement: 626 cc
Bore / Stroke: 76 x 69 mm
Power: 60 HP @ 5800 rpm
Weight: 84 Lb
With a forced air blower.

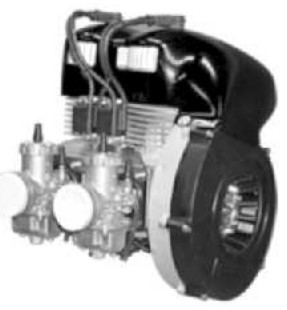

"Compact - MZ-202, de 606 cc"
Model: MZ-301
Arquitecture: 2-stroke3-cylinder In-line
Cooling: Air
Total Displacement: 939 cc
Bore / Stroke: 76 x 69 mm
Power: 85 HP @ 5800 rpm
Weight: 117 Lb
"Compact - MZ-301"
Model: MZ-34
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 313 cc
Bore / Stroke: 76 x 69 mm
Power: 30 HP @ 6250 rpm
Weight: 42 Lb

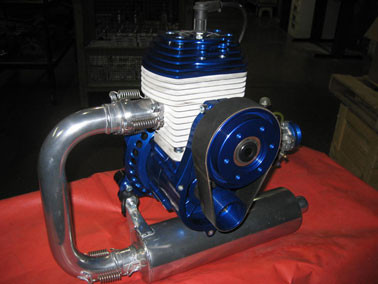

"Compact - MZ-34 color"
Model: MZ-35
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 313 cc
Bore / Stroke: 76 x 69 mm
Power: 30 HP @ 6250 rpm
Weight: 42 Lb
"Compact - MZ-35"
Model: SC-430
Arquitecture: 2-stroke4-cylinder Radial
Cooling: Air
Total Displacement: 430 cc
Bore / Stroke: 66 x 42 mm
Power: 20 HP @ 4200 rpm
Weight: 17 Kg
"Compact - SC-430 color"
Model: SD-570 (SC-470)
Arquitecture: 2-stroke4-cylinder Radial
Cooling: Air
Total Displacement: 579 cc
Bore / Stroke: 66 x 42 mm
Power: 24 HP @ 4200 rpm
Weight: 19 Kg
There is a possibility of adapting a reduction gear unit with a centrifugal clutch.
"SD-570"
