Updated: 12-Feb-2020
Supplier of Snap 100 2-stroke single-cylinder engines, with muffler, mechanical reducer, electric starter and cooling fan. It gave 17 hp.
"Cisco-Snap"
-Used in motor gliders such as the Fresh-Breeze shown with the propeller inside a circular cage to protect the pilot.
From Appendix 10: Cisco Motors started with a lightweight 2-stroke motorized paraglider, the Snap 100. A few years later, it already has a wider range with several single-cylinders and also two 2-stroke boxer engines, one is air cooled and the other water cooled.

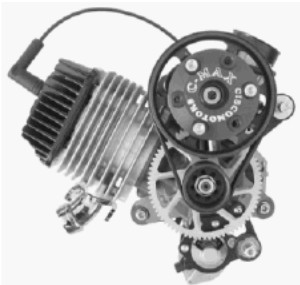

"C-Max with gear for paraglider"

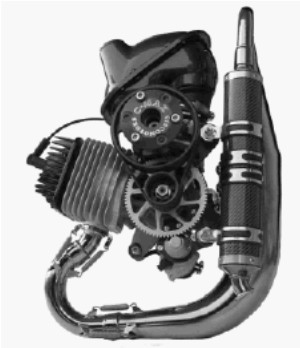

"C-Max with fuel tank and muffler"

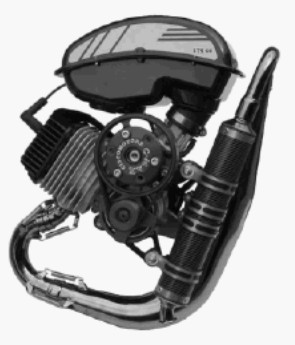

"C-Max 175 cc variant, complete"

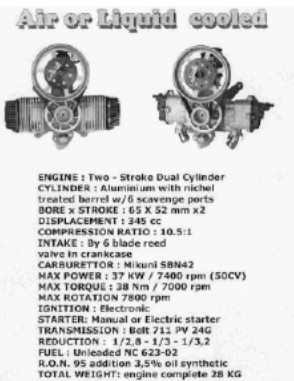

"From a Cisco Motors leaflet"
"Water-cooled boxer with starter gear"
"Cisco Motors - Snap Ego 110"
"Cisco Motors - C-Max C model, complete"
Engines of CISCO MOTORS
Model: boxer 2 cils agua
Arquitecture: 2-stroke2-cylinder Boxer
Cooling: Liquid
Total Displacement: 345 cc
Bore / Stroke: 65 x 52 mm
Power: 37 kW @ 7400 rpm
Weight: 28 Kg
"Cisco Motors - Water-cooled boxer with starter gear"
Model: boxer 2 cils aire
Arquitecture: 2-stroke2-cylinder Boxer
Cooling: Air
Total Displacement: 345
Bore / Stroke: 65 x 52 mm
Power: 37 kW @ 7400 rpm
Weight: 28 Kg
Model: C-Max -M, -E, -C
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 175 cc
Bore / Stroke: 51 x 47 mm
Power: 20 kW @ 8000 rpm
Weight: 14 Kg
The S model has manual starter and weighs 14.2 kg.
The E model has electric starter and weighs 14,9 kg
The C model has manual starter and clutch. It weighs 14,8 kg.
"Cisco Motors - C-Max C model, complete"
Model: Snap 100
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 17 CV @ rpm
Weight:
Snap 100 engines have a muffler, gear, electric starter and cooling fan.
"Cisco-Snap"
Model: Snap Ego 110
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 111.67 cc
Bore / Stroke: 55 x 47 mm
Power: 15 kW @ 8900 rpm
Weight:
With electric ignition and manual starter.

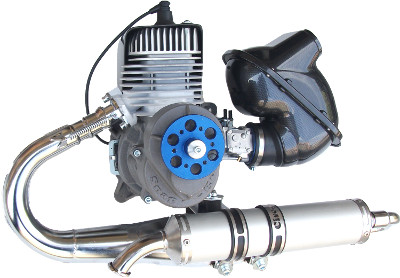

"Cisco Motors - Snap Ego 110"
Model: Snap Ego 120
Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 120 cc
Bore / Stroke: 55 x 50 mm
Power: 21 CV @ 8800 rpm
Weight: 12 Kg
