It is the "Fabrica Torinese Velivoli Chiribiri". It operated between 1910 and 1929.

-An inline 4-cylinder, water-cooled, 50 hp Chiribiri engine, was fitted on the A. Chiribiri nr 5, in 1912.

Chiribiri Logo
“Logo”

-In addition to the 1912 4-cylinder and 50 CV, new engines of this brand have emerged:

-In 1910, they already made a horizontally-opposed,  2-cylinder, air-cooled engine that gave 25 CV.

-In 1911, they made a water-cooled, four-cylinder, inline engine, that delivered 35/40 CV.

-In the prolific 1912, besides the 50 CV engine they also made a 60 CV, air-cooled, eight-cylinder engine.

-In 1912 they also made an 80 CV, 8-cylinder double row (V?) engine.

-Also in 1912, the water-cooled, 80/100 CV with 4 inline cylinders, used on airships.

-Finally, in 1915, they produced the "J-1" engine that delivered 120 CV at 1,200 rpm, which was the 9-cylinder Le Rhone rotary engine built under license .

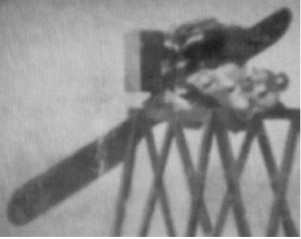

From Appendix 9: From 1912, we have a dim photograph of this engine in a static test stand, as it appeared in the "Storia dell'aviazione" the same year.

-It is shown as an adapted 50 CV, four-cylinder, car engine.

El Chiribiri con hélice
"El Chiribiri con hélice"

-There were 25, 40, 50 and 100 CV engines.

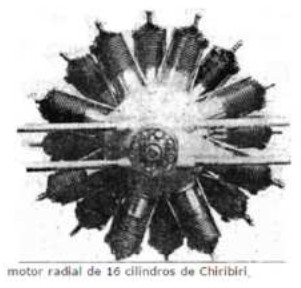

From Appendix 10: New discovery of a 16-cylinder radial engine built by this automobile brand.

Chiribiri 16-cylinder radial engine
"Chiribiri 16-cylinder radial engine"

Engines of CHIRIBIRI

Model: 16-cyl radial

Arquitecture: 16-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: @ rpm
Weight:

Other details:
Model: 2 cyl. 25 CV boxer, air

Arquitecture: 2-cylinder Horizontally opposed
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 25 CV @ rpm
Weight:

Other details:
Model: 4 cyl, 35/40 CV, water

Arquitecture: 4-cylinder In-line
Cooling: Liquid
Total Displacement:
Bore / Stroke:
Power: 35 / 40 CV @ rpm
Weight:

Other details:
Model: 4 cyl, inline 50hp

Arquitecture: In-line
Cooling: Liquid
Total Displacement:
Bore / Stroke:
Power: 50 CV @ rpm
Weight:

Other details:

It was mounted on the A. Chiribiri nr 5, in 1912.

Chiribiri with propeller

"Chiribiri with propeller"

Model: 4 cyl. 80/100 CV, water

Arquitecture: 8-cylinder
Cooling:
Total Displacement:
Bore / Stroke:
Power: 80 CV @ rpm
Weight:

Other details:

For airships

Model: 8 cyl. 60 CV, air

Arquitecture: 8-cylinder
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 60 CV @ rpm
Weight:

Other details:
Model: 8 cyl. 80CV

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke:
Power: 80 CV @ rpm
Weight:

Other details:

Two rows (V?).

Model: J-1, 100 CV

Arquitecture: 9-cylinder Rotary
Cooling:
Total Displacement:
Bore / Stroke:
Power: 120 CV @ 1200 rpm
Weight:

Other details:

Le Rhone built under license.
