Updated: 06-Feb-2020

2-stroke engines, designed at the Royal Aircraft Establishment (RAE) by research engineer C. F. Caunter.

-The "B" model was a 4-cylinder, upright, in line, air-cooled engine with a displacement of 500 cc. per cylinder.

Caunter, B
"Caunter, B"

-The "C" had also 4 cylinders, but inverted. It had a displacement of 2.3 liters.

-Another Caunter engine with 3 inverted cylinders in line had 1.9 l. of displacement. All engines drove puller propellers.

Caunter, C
"Caunter, C"

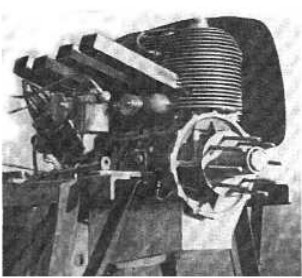

-In the text appears the B model running, now we show it stopped without the propeller.

Caunter Modelo B
"Caunter Modelo B"

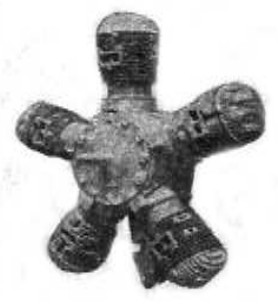

-They also made radial engines like the following five-cylinder. It seems that they made three- and seven-cylinder engines with the same type of cylinders. All of them were two-stroke.

Caunter 5-cylinder engine
"Caunter 5-cylinder engine"

-The three-cylinder gave 38 hp. The five-cylinder, delivered 68 hp and the 7-cylinder reached 85 hp.

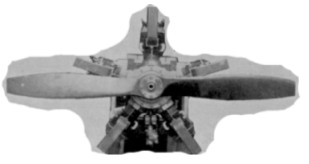

-Another view of the Caunter 5-cylinder radial that gave 60 hp.

Caunter, front view
"Caunter, front view"

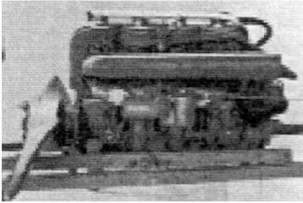

-From appendix 7: Another view of the Caunter Type C on the carburetor side.

Caunter C de cuatro cilindros
"Caunter C four-cylinder"

From Appendix 10: We have some more details of the Caunter two-stroke, 5-cylinder radial designed by C. F. Caunter.

View of the 5-cylinder Caunter engine
"View of the 5-cylinder Caunter engine"

-The interesting thing about the Caunter solution is that because of the two-stroke cycle, the pistons have two different areas or diameters. The bigger one in the lower part will create a pressure sufficient to introduce the mixture in the top of the piston and fill and sweep the cylinders.

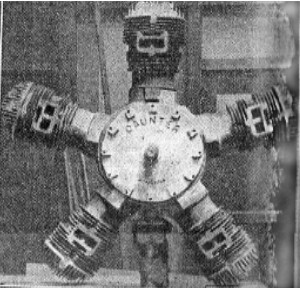

Caunter engine front view
"Another Caunter engine front view"

-The ducts that transfer the mixture from the bottom to the top are clearly seen in the first picture: they are double white bends next to the exhaust ports that are black rectangular tubes that go towards the periphery of the engine.

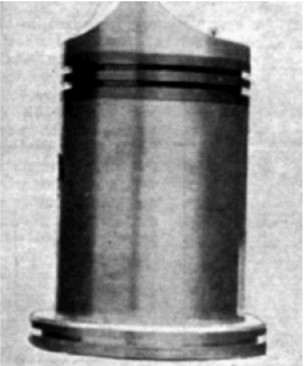

Caunter - Characteristic piston shape
"Characteristic piston shape. See the deflector."

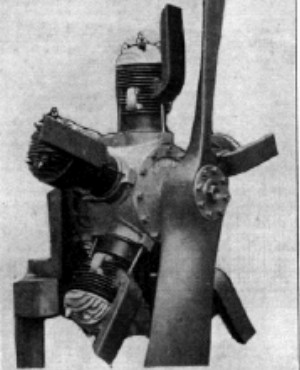

-Factory picture for this engine designed by an engineer of Royal Establishment.

Engines of CAUNTER

Model: 3 cyl. radial

Arquitecture: 2-stroke3-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 38 HP @ rpm
Weight:

Other details:
Model: 5 cyl, radial

Arquitecture: 2-stroke5-cylinder Radial
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 68 HP @ rpm
Weight:

Other details:
Caunter 5-cylinder front view

"Caunter 5-cylinder front view"

Model: 7 cyl. radial

Arquitecture: 2-stroke7-cylinder Radial
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 85 HP @ rpm
Weight:

Other details:
Model: B, 4 cyl. en linea

Arquitecture: 2-stroke4-cylinder In-line
Cooling: Air
Total Displacement: 2000 cc
Bore / Stroke:
Power: @ rpm
Weight:

Other details:
Caunter B model

"Caunter B model"

Model: C, 4 cyl. inverted inline

Arquitecture: 2-stroke4-cylinder In line inverted
Cooling:
Total Displacement: 2300 cc
Bore / Stroke:
Power: @ rpm
Weight:

Other details:
Caunter C 4-cylinder

"Caunter C 4-cylinder"

Model: D,

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke:
Power: @ rpm
Weight:

Other details:
