BRUNO VON FESTENBERG - PAKISCH

(Germany)


BRUNO VON FESTENBERG - PAKISCH engine specifications

(ver Von Fastenberg - Pakish).
Brun (Bruno) Von Fastenberg-Pakish.

Based in Hamburg, Bruno began with a four-cylinder radial air-cooled engine.

-The cylinder base was from a two-stroke motorcycle engine. It reached a maximum power of 40 hp.

Radial de cuatro cilindros
"Four-cylinder radial"

-Later he made two air-cooled, two-stroke engines with two upright cylinders: the W.1 and W.2.

Motor modelo W.2
"Motor modelo W.2"

-The W.1 delivered 20 CV at 3,000 rpm with a displacement of 600 cc.

-The W.2, somewhat larger, gave 30 CV at 1,800 rpm, with 1000 cc of total displacement.

Engines of BRUNO VON FESTENBERG - PAKISCH

Model: 2 cils. en linea, aire, modelo W.1

Model: 2 cils. en linea, aire, modelo W.2

Model W.2 engine

"Model W.2 engine"

Model: Radial 4 cils., 40 HP

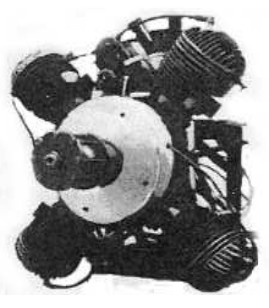

Four-cylinder radial

"Four-cylinder radial"
