BROUHOT manufactured in Vierzon. At the 1909 Paris Air Show they presented the 8-cylinder V-engine, derived from automobile engine with the V at 90°.

Brouhot motor en V
"Brouhot".

-The cylinders have 105 mm bore and 110 mm stroke with hemispherical chambers. The engine delivered 60 hp at 1,400 rpm was water cooled and had 464 cubic inches of total displacement. It weighed 308 lb.

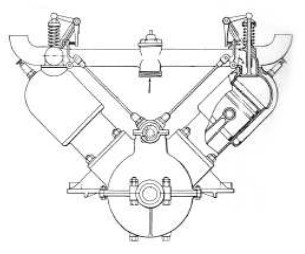

Brouhot cross section
"Brouhot cross section"

-The most interesting of this engine is that the valve control rods were not pushers but pullers.

Engines of BROUHOT

Model: 8V, 60 HP

Brouhot

"Brouhot"
