(See Bramo).

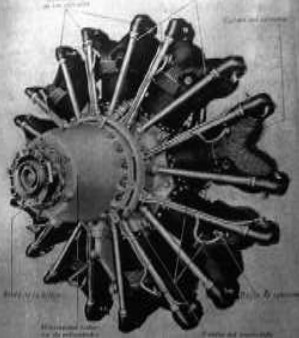

From appendix 6: Below we show an illustration taken from an old publication about the Spanish Civil War. Perhaps it is a translated manual of an engine arrived with the German intervention.
-It was a geared 9-cylinder radial that delivered CV 1000. This engine would be built at BMW as model 323.
"Bramo-Fafnir"
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
