Four-cylinder radial engine with 250 cc for each cylinder. In total 1000 cc. Giving 25 HP but weighing 60 Kg. Built between 1931 and 1932.

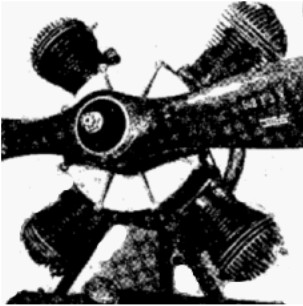

“Beuth engine with propeller” (PiP-Flu)

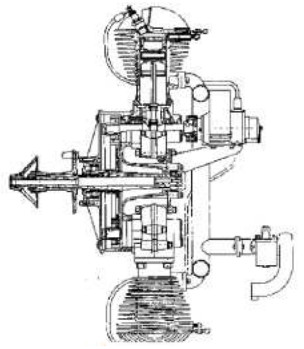

“Beuth cross-section. 4 coupled 2-stroke engines”
Arquitecture: 2-stroke4-cylinder Radial
Cooling:
Total Displacement: 1000 cc
Bore / Stroke:
Power: 25 CV @ rpm
Weight: 60 Kg
"Beuth engine with propeller"
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
