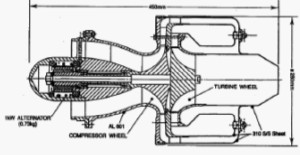

We located a cross-section diagram of a small turbine for missiles and UAVs, designed by "Aeronautic Research Laboratory" from the Australian Department of Defense in Melbourne, Victoria.

ARL cross section
"ARL cross section"

-This small turbojet engine has been developed around a "Garrett-AiResearch" turbocharger. It has reverse-flow combustion chambers, and injectors.

Engines of ARL

Model: Turbojet
