In 1913, Welles Adams released its water-cooled, 50 hp inline four-cylinder engine.

“Welles & Adams V8”

-The following year, in 1914, they produced a V8 engine that gave 135 hp V8 at 1,350 rpm.

-It displaced 763.39 cubic inches and was water cooled.

-The Welles-Adams engines were manufactured by the company in Bath, New York.

From Appendix 6: The main text describes a Welles-Adams V8. A four-cylinder inline engine has now been located with sufficient and accurate information.

“Two ads for the four-cylinder engine”

-The second advertisement includes a cross-sectional diagram.

“Two views of the left side”

-On the left side, we observe the magneto and the fuel system with carburetor and intake manifold, rocker arms, and a water collector at the top. The magneto has a large permanent magnet.

-This contrasts with the view of the right side, which is bare of accessories. Water enters through the bottom of the cylinders.

“Photo of another Welles-Adams” (AEHS)

From Appendix 10: New photograph of the vertical inline four-cylinder engine, with the oil pan slightly smaller than those shown in the main text.

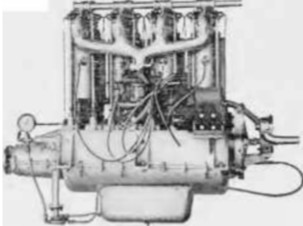

The W&A Engine, Carburetor Side

-The 50 HP, four-cylinder engine was frequently advertised in American aeronautical magazines in 1912.

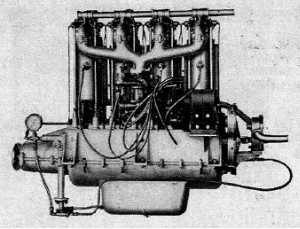

“W&A 50 HP”

“Another version of the engine in a 1912 ad”

-The author was struck by the phrase in the lower right corner of the advertisement:
 “If you wish to do something better than “Grass-Cutting”, consult Welles & Adams.”

-Continued discussion of this brand's 50 HP, four-cylinder engine.

-First, a diagram of the side and rear elevations, showing the engine's architecture.

“Diagram of the 50 HP Welles & Adams engine”

-Around 1912, a pioneer like Fred Eells used this engine in his aircraft, which he used for aerial photography.

“The camera is under Fred's seat”

From Appendix 12: V8 Cylinder Engine. Photo similar to one in the main text.

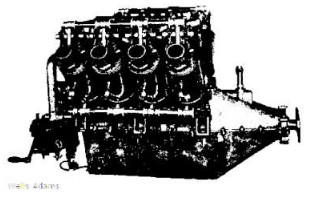

“The 135 HP V8” (PeT-Flu)
