“Agencie General des Moteurs Ava” sold AVA engines built by Thibault et Aubry (1935) in collaboration with engineer Violet.

Anuncio en prensa
"Anuncio en prensa"

-They had three engines:

-The 4-cylinder 4-A.00 was a two-stroke engine that gave 25/30 CV with a displacement of 1077 cc. It gave 25 CV at 2300 rpm.
-The H4 model that gave 30 CV.
-The 4-A.02 was from 1936 and delivered 35/40 CV with a ten millimeters larger piston diameter.

-Below we see a picture of the 4-A.00, a horizontally opposed, four-cylinder, air-cooled engine.

AVA 4-A.00
"AVA 4-A.00"

-They had a rotary admission valve with two inlets at the bottom of the block, and just below it, was the carburetor.

AVA, sección
"AVA, cutaway"

-Building permits are acquired from Max Holste in France and AB Gibbons in England.

-Three new views for the AVA  horizontally opposed, four-cylinder engine. It was built in 1935 by L'Agence General Moteurs AVA, Paris.

AVA Type 4A

AVA Type 4A

AVA Type 4A
“AVA Type 4A”

-The 4A-00 was a two-stroke that gave 28 CV at 2800 rpm.

-The 4A-02 had a little more displacement and gave 35 CV.

-There was a project of a four-cylinder, two-stroke V engine that was evolving by 1937. We are looking for more information.

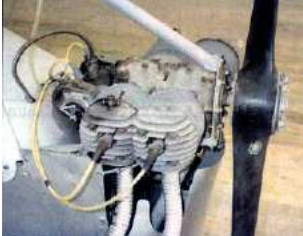

From Appendix 10: A photo of an Ava engine installed on an airplane with its propeller.

AVA 4-cylinder boxer
“AVA 4-cylinder boxer” (PiP)

Engines of AVA

Model: 4-A-00

Arquitecture: 2-stroke4-cylinder Horizontally opposed
Cooling:
Total Displacement: 1077 cc
Bore / Stroke:
Power: 25 CV @ 2300 rpm
Weight:

Other details:
AVA 4-A.00

"AVA 4-A.00"

Model: 4-A-02

Arquitecture: 4-cylinder Horizontally opposed
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 35 / 40 CV @ rpm
Weight:

Other details:
Model: H-4

Arquitecture: Horizontally opposed
Cooling:
Total Displacement:
Bore / Stroke:
Power: 30 CV @ rpm
Weight:

Other details:
